Technical description | |
Workflow | Decoiling----feeding----leveling---- guiding----roll forming-----cut to length----run out table |
 Components   |
Decoiler                               1 set Leveling device                  1 set Forming MC                        1 set Punching device                 1set Cutting device                     1set Hydraulic station                1 set Computer control box        1 set Output blade                        1 set  |
Name of commodity &Â specification | YX 80-300 CÂ purline machine |
Roller material |
45# steel polished and coated with chrome HRC55-60°  |
Shaft diameter  |
80mm  |
Shaft material  |
high grade No.45 steel after treatment  |
Forming steps  |
13 Â |
Main motor power  |
7.5 KW Â |
Hydraulic motor power  |
5 KW Â |
Voltage  |
380V 3phase 50 HZ (or as your requirement) Â |
Thickness  |
1-3 mm  |
Punching type  |
automatic hydralic cutting after forming  |
Cutting type  |
hydraulic cutting after forming  |
Material of cutter and punching mould  |
Cr12 , quenched  |
Productivity  |
10_12m/min(not including the cutting time) Â |
PLC Â |
PLC Frequency Control System with touch screen  |
Terms | |
Payment  type | 35%  T/T  prepaid  and  balance  should  be  paid  before  loading |
Delivery  time | 30days after receving advance payment |
Guarantee  period | 18monthes  free  service/  pay  service  all  the  machine  life |
Installation  and  training | If  buyers  visit  our  factory  and  check  the  machine,  we  will  teach  you  how  to  install  and  use  the  machine,  and  also  train  your  workers/technician  face  to  face. Without  visiting, we  will  send  you  user  manual  and video  to  teach  you  to  install  and  operate. If  buyer  needs  our  technician  to  go  to  your  local  factory, please  arrange  board  and  lodging  and  other  necessary  things. |

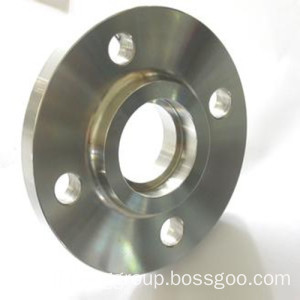

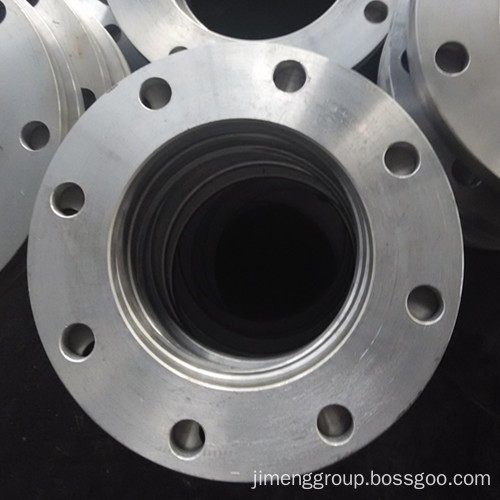

Hebei Jimeng Highstrength Flange-tubes Group Co.,Ltd. is a large manufacturer engaged in producing all kinds of Forged Steel Flange with high quality and competitive price.
1.Standard |
ASME B16.5,ASME B 16.47,DIN EN 1092-1,DIN 1759-1,MSS SP-44,API605,GB/T9112 GB/T13402 HG/T20592 HG/T20615 ,GB/T 10746,GB/T10747 |
2.Material |
A105,Q235B,10#,20#,16Mn,45#,Q345B,304,304L316,316L |
3.Type |
Slip-On, Welding Neck, Blind, Socket Welding |
4.Size |
OD:1/2''--80'' |
5.Pressure Class |
CL: Class 150, 300, 600, 900, 1500 and2500. PN:PN 6, PN 10 , PN 16, PN 25, PN 40 and PN 64. |
6.Surface Treatment |
RF,FF,G,RJ,FF |
7.Packing |
wooden cases,wooden pallet,container or as your request |
8.Delivery Time |
within 20 days |
9. Usage |
chemical industry, electric power,oil pipe system,building,water transmission and so on. |
10.MOQ |
2MT |
DIN Flange, DIN 2633 Flange, DIN Standard Flange
Hebei Jimeng Highstrength Flange-tubes Group Co.,Ltd. , http://www.jimengflange.com
